Technical Specifications
Pick a capacity to see its exact numbers — pulled straight from the manufacturer spec sheet.
Performance
- Model
- 3400W 3-Star Inverter
- Cooling capacity (rated)
- 3,400 W
- Power consumption (rated / min / max)
- 1,005 W / 278 W / 1,225 W
- Rated current
- 4.50 A
- Variable capacity range
- 40% – 115% (+ 50% Eco)
Efficiency
- Star rating
- 3-Star · BEE 2026
- ISEER
- 4.41
- Annual energy consumption (CSTL)
- 2,631.91 kWh
Comfort & noise
- Max airflow (Turbo)
- 730 CMH
- Moisture removal
- 1.50 Kg/Hr
- Indoor unit noise (Low–Turbo)
- 42 – 48 dB(A)
- Outdoor unit noise
- 56 dB(A)
Build & installation
- Compressor
- Highly · Rotary
- Refrigerant
- R32 · 380 g charge
- Operating voltage range
- 145V – 290V
- Max operating ambient
- 56°C
- Indoor unit (W×H×D)
- 840 × 320 × 230 mm
- Indoor unit weight (net)
- 9.80 kg
- Outdoor unit weight (net)
- 21.80 kg
Features
- Fan speeds
- 5
- Temperature range
- 16°C – 30°C
- Auto restart / Sleep / Auto swing / 24hr timer
- Yes
- Turbo / Quick Chill
- Yes
- Child lock
- No
- Economy mode
- No
- App connectivity
- Optional via EcoSphere™
Performance
- Model
- 4800W 3-Star Inverter
- Cooling capacity (rated)
- 4,800 W
- Power consumption (rated / min / max)
- 1,380 W / 505 W / 1,840 W
- Rated current
- 6.10 A
- Variable capacity range
- 40% – 115% (+ 50% Eco)
Efficiency
- Star rating
- 3-Star · BEE 2026
- ISEER
- 4.41
- Annual energy consumption (CSTL)
- 3,715.64 kWh
Comfort & noise
- Max airflow (Turbo)
- 850 CMH
- Moisture removal
- 1.50 Kg/Hr
- Indoor unit noise
- 44 dB(A)
- Outdoor unit noise
- 58 dB(A)
Build & installation
- Compressor
- Sanyo · Rotary
- Refrigerant
- R32 · 480 g charge
- Operating voltage range
- 145V – 290V
- Max operating ambient
- 56°C
- Indoor unit (W×H×D)
- 865 × 320 × 230 mm
- Indoor unit weight (net)
- 9.90 kg
- Outdoor unit weight (net)
- 24.10 kg
Features
- Fan speeds
- 5
- Temperature range
- 16°C – 30°C
- Auto restart / Sleep / Auto swing / 24hr timer
- Yes
- Turbo / Quick Chill
- Yes
- Child lock
- No
- Economy mode
- No
- App connectivity
- Optional via EcoSphere™
Performance
- Model
- 5276W 3-Star Inverter
- Cooling capacity (rated)
- 5,276 W
- Power consumption (rated / min / max)
- 1,485 W / 480 W / 1,950 W
- Rated current
- 6.58 A
- Variable capacity range
- 40% – 115% (+ 50% Eco)
Efficiency
- Star rating
- 3-Star · BEE 2026
- ISEER
- 4.41
- Annual energy consumption (CSTL)
- 925.30 kWh
Comfort & noise
- Max airflow (Turbo)
- 1,050 CMH
- Moisture removal
- 1.50 Kg/Hr
- Indoor unit noise (Low–Turbo)
- 46 – 52 dB(A)
- Outdoor unit noise
- 58 dB(A)
Build & installation
- Compressor
- Sanyo · Rotary
- Refrigerant
- R32 · 480 g charge
- Operating voltage range
- 145V – 290V
- Max operating ambient
- 56°C
- Indoor unit (W×H×D)
- 988 × 320 × 230 mm
- Indoor unit weight (net)
- 11.7 kg
- Outdoor unit weight (net)
- 24.00 kg
Features
- Fan speeds
- 5
- Temperature range
- 16°C – 30°C
- Auto restart / Sleep / Auto swing / 24hr timer
- Yes
- Turbo / Quick Chill
- Yes
- Child lock
- Yes
- Economy mode
- Yes
- App connectivity
- Optional via EcoSphere™
Performance
- Model
- 6300W 3-Star Inverter
- Cooling capacity (rated)
- 6,300 W
- Power consumption (rated / min / max)
- 1,790 W / 530 W / 2,310 W
- Rated current
- 7.90 A
- Variable capacity range
- 40% – 115% (+ 50% Eco)
Efficiency
- Star rating
- 3-Star · BEE 2026
- ISEER
- 4.41
- Annual energy consumption (CSTL)
- 1,105.45 kWh
Comfort & noise
- Max airflow (Turbo)
- 1,250 CMH
- Moisture removal
- 1.80 Kg/Hr
- Indoor unit noise (Low–Turbo)
- 48 – 54 dB(A)
- Outdoor unit noise
- 58 dB(A)
Build & installation
- Compressor
- Sanyo · Rotary
- Refrigerant
- R32 · 650 g charge
- Operating voltage range
- 145V – 290V
- Max operating ambient
- 56°C
- Indoor unit (W×H×D)
- 1090 × 345 × 254 mm
- Indoor unit weight (net)
- 13.4 kg
- Outdoor unit weight (net)
- 26.6 kg
Features
- Fan speeds
- 5
- Temperature range
- 16°C – 30°C
- Auto restart / Sleep / Auto swing / 24hr timer
- Yes
- Turbo / Quick Chill
- Yes
- Child lock
- Yes
- Economy mode
- Yes
- App connectivity
- Optional via EcoSphere™
Figures are the manufacturer's declared values from the 2026 technical specification sheet. Real-world performance varies with room conditions.

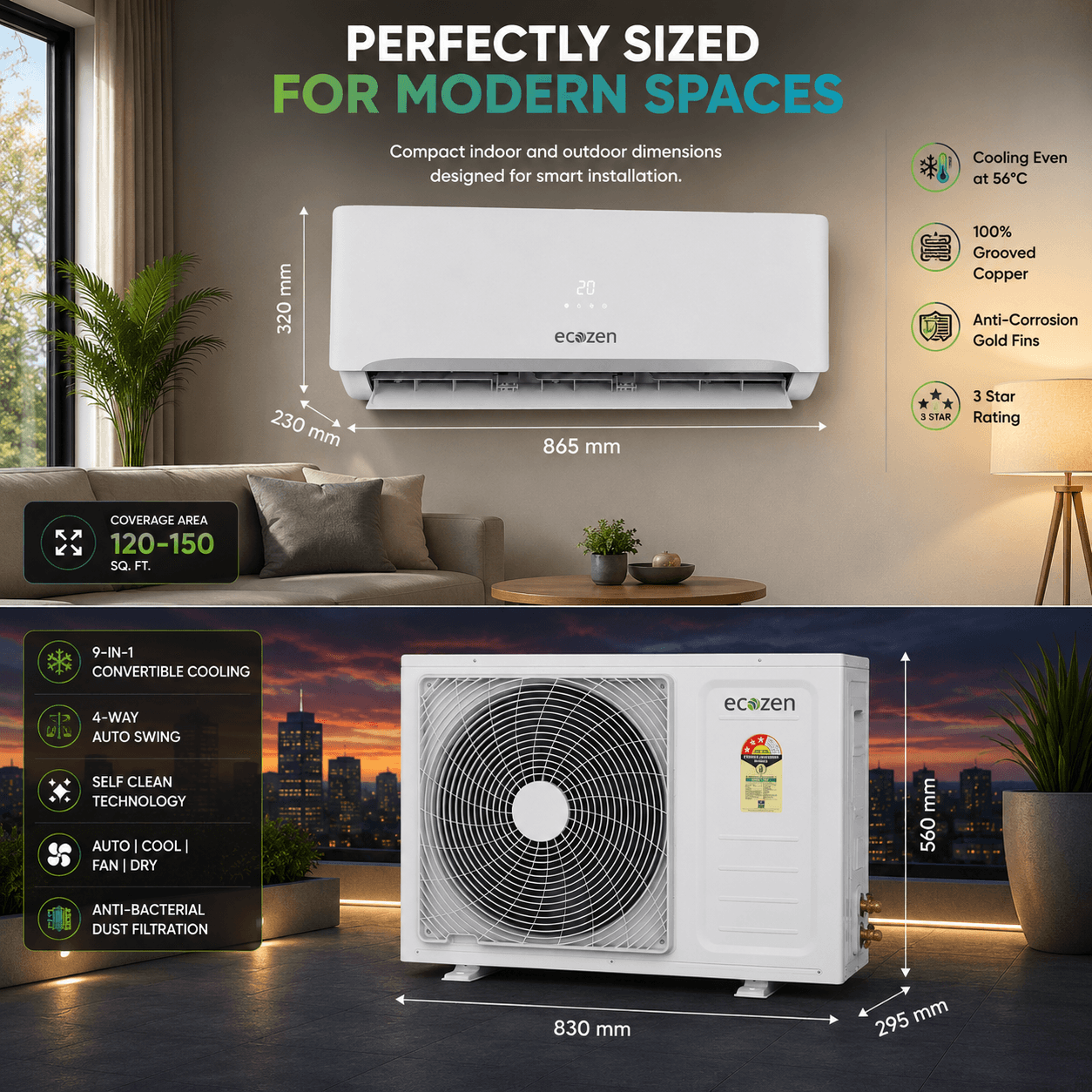

Unit Dimensions
Indoor and outdoor unit measurements, for installation planning.
